The components of the RC car we developed were printed using a 3D printer, and we used NRF for communication to control the RC car.

RC CAR - nRF

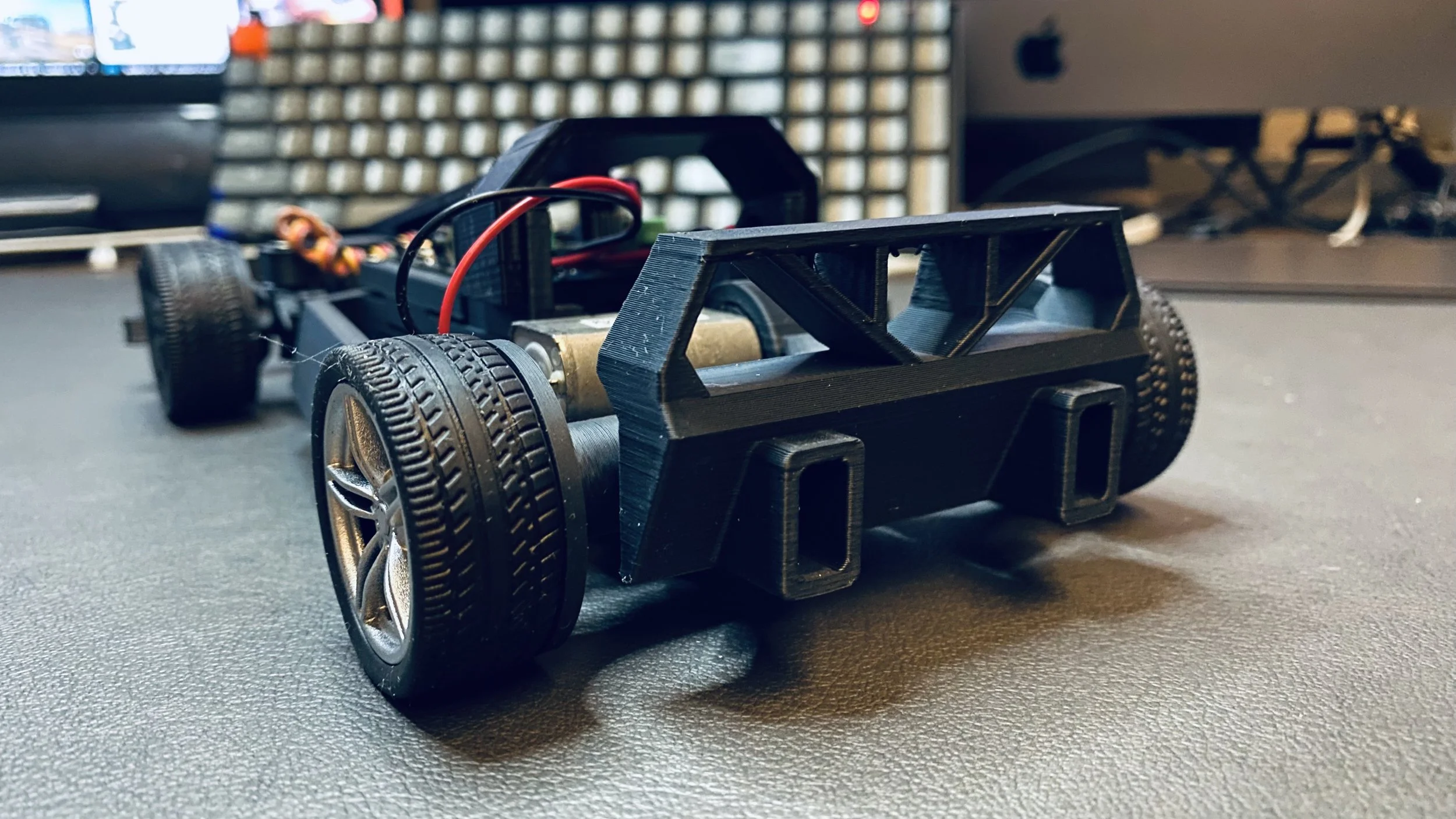

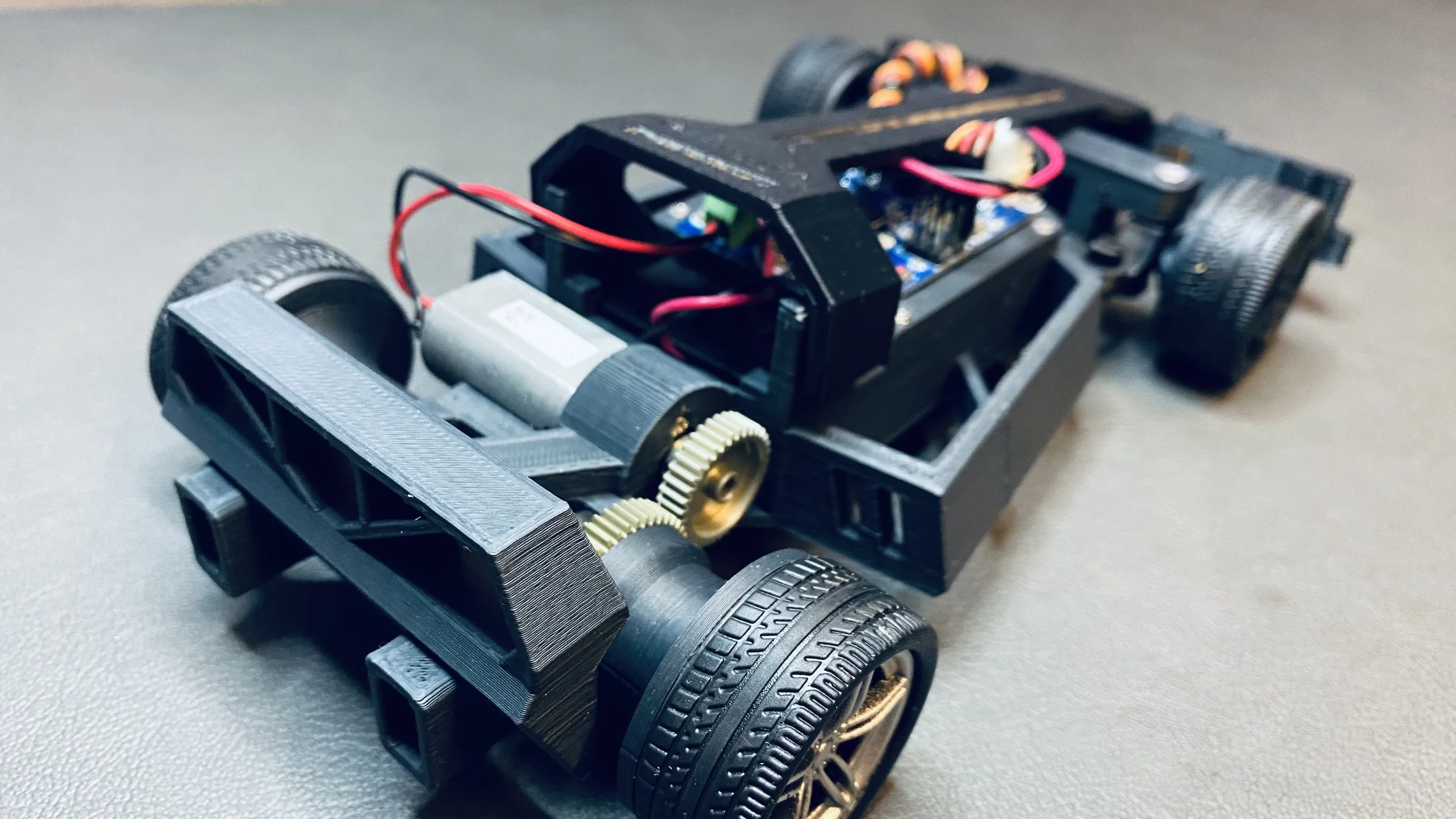

The components of the RC car we developed were printed using a 3D printer, and we used NRF for communication to control the RC car. We created a board at JLCPCB that includes the NRF module, two motor drivers, and a gyroscope sensor. The microcontroller on the board is the RP2040 for Raspberry Pi. In the first test, the communication range was about 50 meters, and with some tuning, it seems like it could improve further.

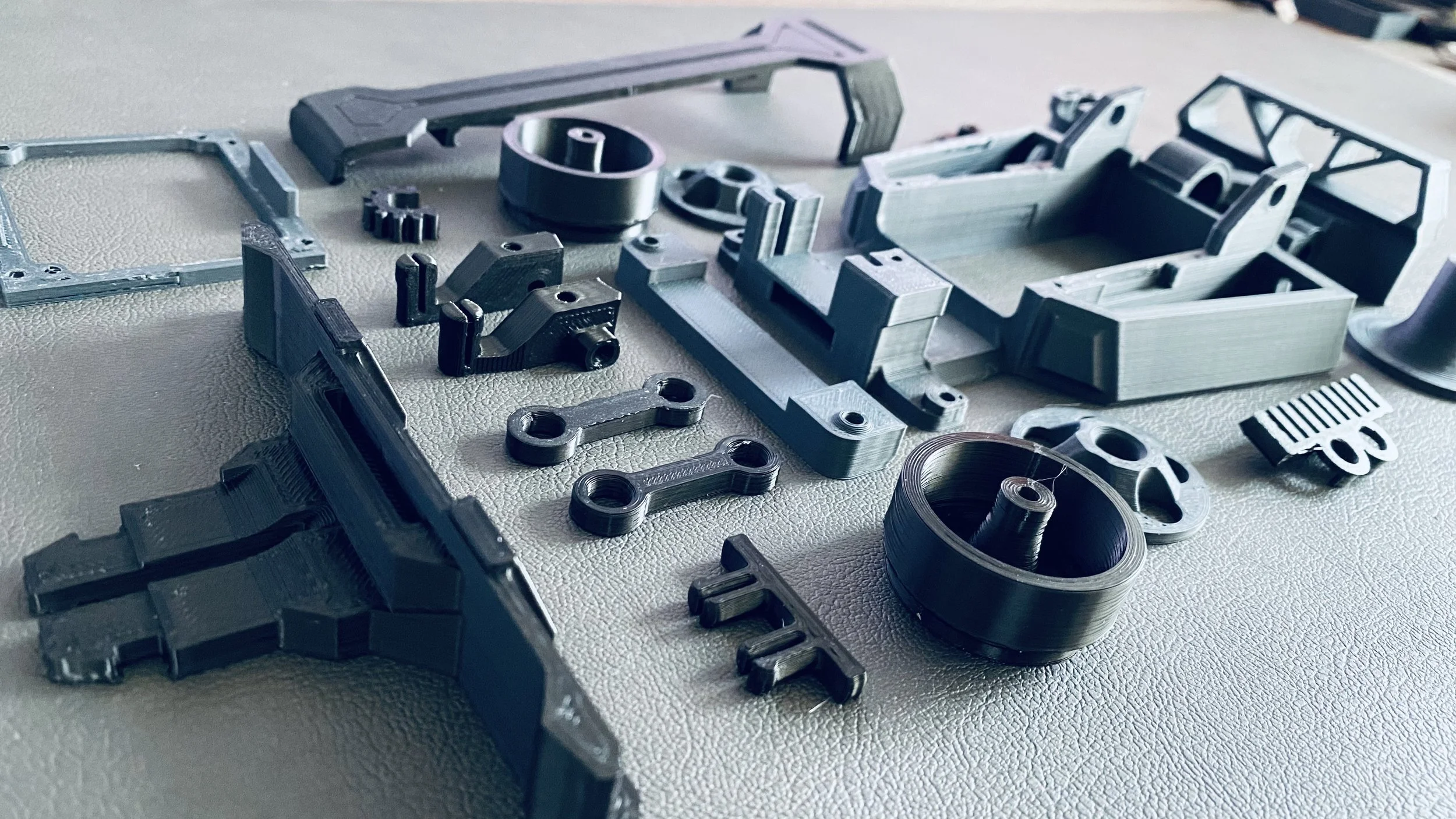

3D PRINTING

  • Creality Ender3 V3 SE

  • Layer height: 0.25mm

  • Wall thickness: 0.8mm

  • Filling density: 20%

  • Fill pattern: Cubic

  • Nozzle temperature: 220º

  • Bed temperature: 60

  • Print Speed : 200 mm/s

  • Support : Off

  • Flow: 100%

PARTS LIST

  • RP2040 nRF Motor Board

  • 180 GEAR MOTOR x 1

  • 18650 BATTERY x 2

  • 18650 BATTERY HOLDER x 1

  • SG90 SERVO MOTOR x 1

  • BEARING (688zz) x 1

  • WHEEL TIRE (383A) x 4

  • MOTOR GEAR(48DP 35T)

  • WHEEL GEAR (48DP 48T)

  • MAIN SHAFT (3 x 100mm)

  • M3 x 25mm BOLT x 4

  • M2.5 x 10mm BOLT x 3

  • M2 x 5mm BLOT x 2

  • HEADLESS BOLT(3mm) x 2

rp2040 nrf motor board

3DEMP.com의 이미지 및 소스코드는저작자와 출처를 표시하면 개인적으로 자유이용이 가능합니다. 단 영리적 이용과 2차적 저작물의 작성은 허용되지 않으니 주의 해주세요
